135compact.com       110 cartridge ultra compact cameras       Minolta 110 Zoom SLR


The Minolta 110 Zoom SLR was first released 1976, a high end camera for Kodak 110 pocket film
*(see below). The company made quite a range of pocket cameras, including this SLR model, it was in production only until 1979 and had a Mark II successor of completely different shape.

* 110 film was introduced by Kodak in 1972. The film sits in a cartridge, like Kodak's earlier 126 film, but is much smaller. A frame is 13mm × 17mm, has one perforation per image to control film advance and 24 frames per cartridge (12 were also available). The film is protected by a backing paper like 120 film. The frame number is visible through a window at the back of the cartridge. The basic film is ordinary 16mm film which was already on the market, so it could be processed in existing machines. The small picture size made very small, pocketable cameras possible.

Kodak introduced with its 110 film a line of Kodak Pocket Instamatic cameras which were followed by cameras from other manufacturers. Most cameras were cheap point-and-shoot, but very sophisticated models were also made. Small digital cameras made 110 film obsolete. Bit by bit manufacturers
stopped making 110 format film (Fujifilm in 2009), but in 2012 (and 2019) Lomography made a large batch of 110 film, followed by other firms.


The Minolta 110 Zoom SLR has, as its name suggests, a real zoom and is a real SLR with a microprism ring in the viewer for easier focussig. It's an aperture priority automatic system. It has advanced features, a built-in close-up lens and exposure compensation.
Its main features are:

25-50mm F4.5 Rokkor zoom lens, 10 elements in 10 groups, F4.5-F16, min. focus 1m, 0.3m with close-up
Electronic shutter, B, 10s (!) - 1/1000, 1/150 for flash, B
Size 132x108x53,  Weight 430 gr.
100 and 400 ISO, automatic setting, aperture priority automatic exposure with exposure warning in the finder, SLR with microprism ring,
built-in close-up lens, exposure compensation, hot shoe

jpg/110_minolta_110_zoom_slr_IMG_4737.JPG
Camera, shade folded.

jpg/110_minolta_110_zoom_slr_IMG_4738.JPG
Camera, shade extended.

jpg/110_minolta_110_zoom_slr_IMG_4739.JPG
The zoom lens.

jpg/110_minolta_110_zoom_slr_IMG_4750.JPG
Seen from above. On the lens barrel:
Distance setting, zoom setting. If you push the ring towards the body, you can turn beyond 25mm for the makro setting. Front to the right: meter and aperture setting. Exposure compensation slider. Mode wheel: A=automatic shutter, X=flash setting (1/150s) and B setting. Hot shoe. Shutter button with cable release thread. On/off slider.

jpg/110_minolta_110_zoom_slr_IMG_4749.JPG

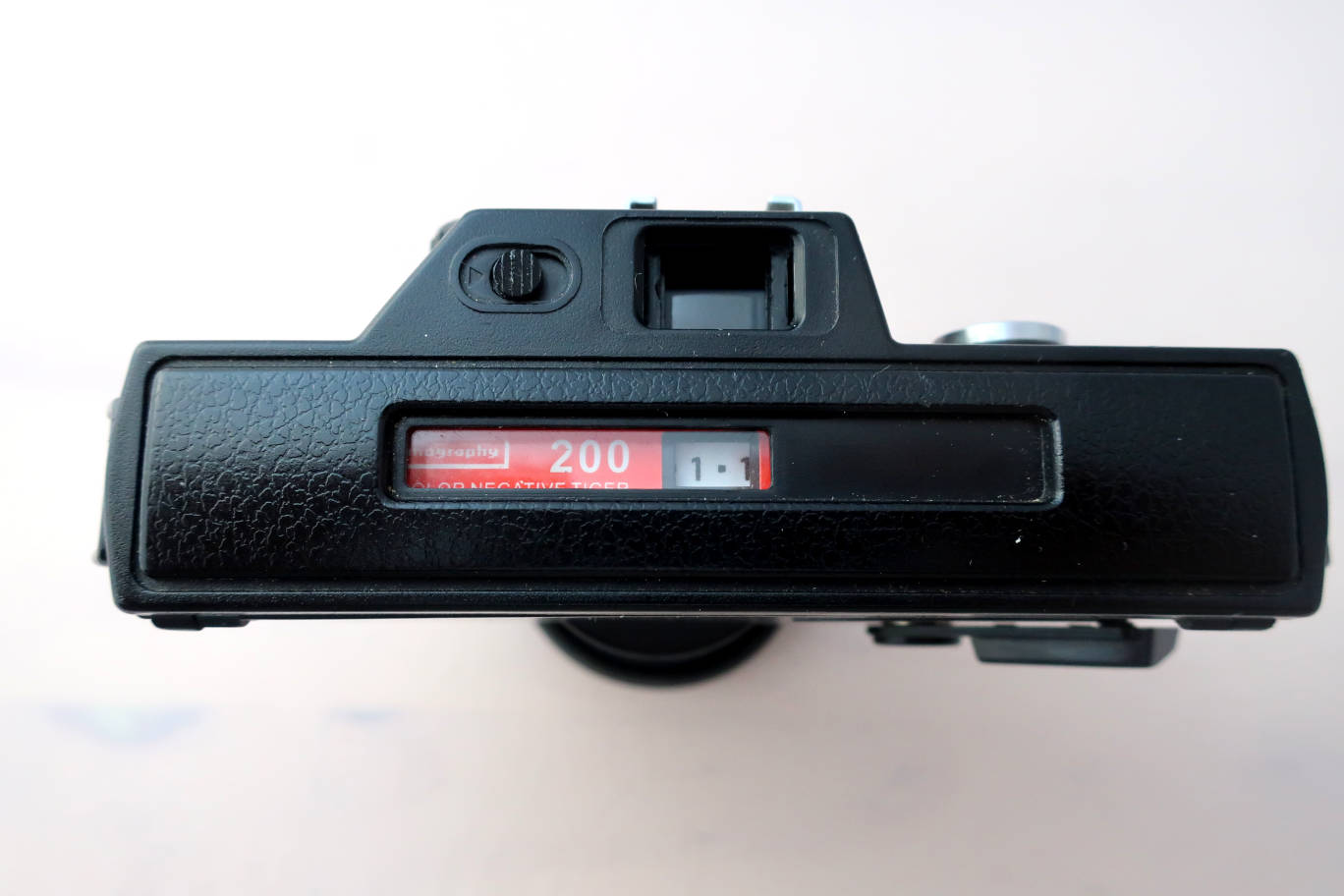

Back view.
The window shows the film type and the frame number. Finder and back opening button.

jpg/110_minolta_110_zoom_slr_IMG_4744.JPG

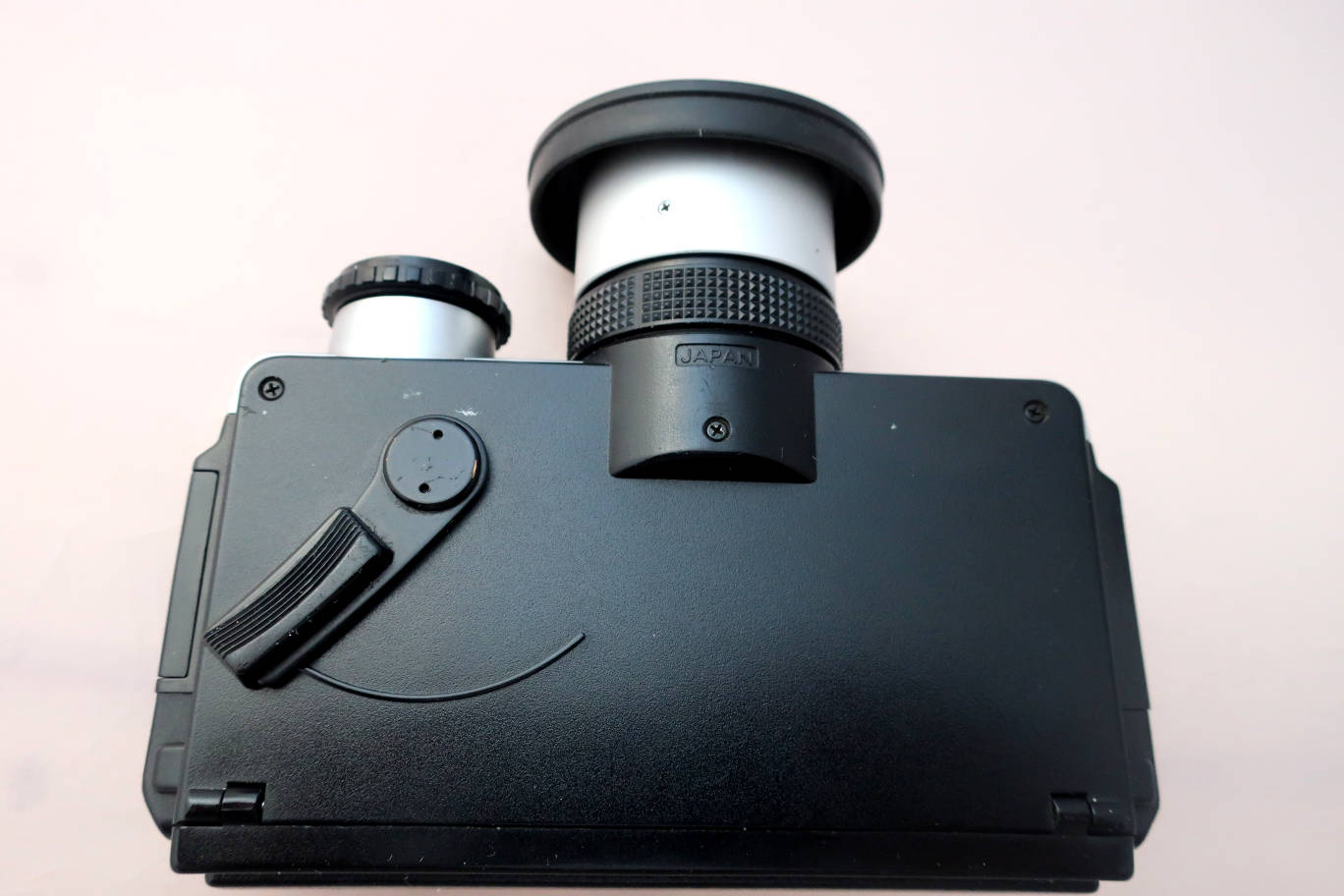

Seen from below. Film advance.

jpg/110_minolta_110_zoom_slr_IMG_4743.JPG

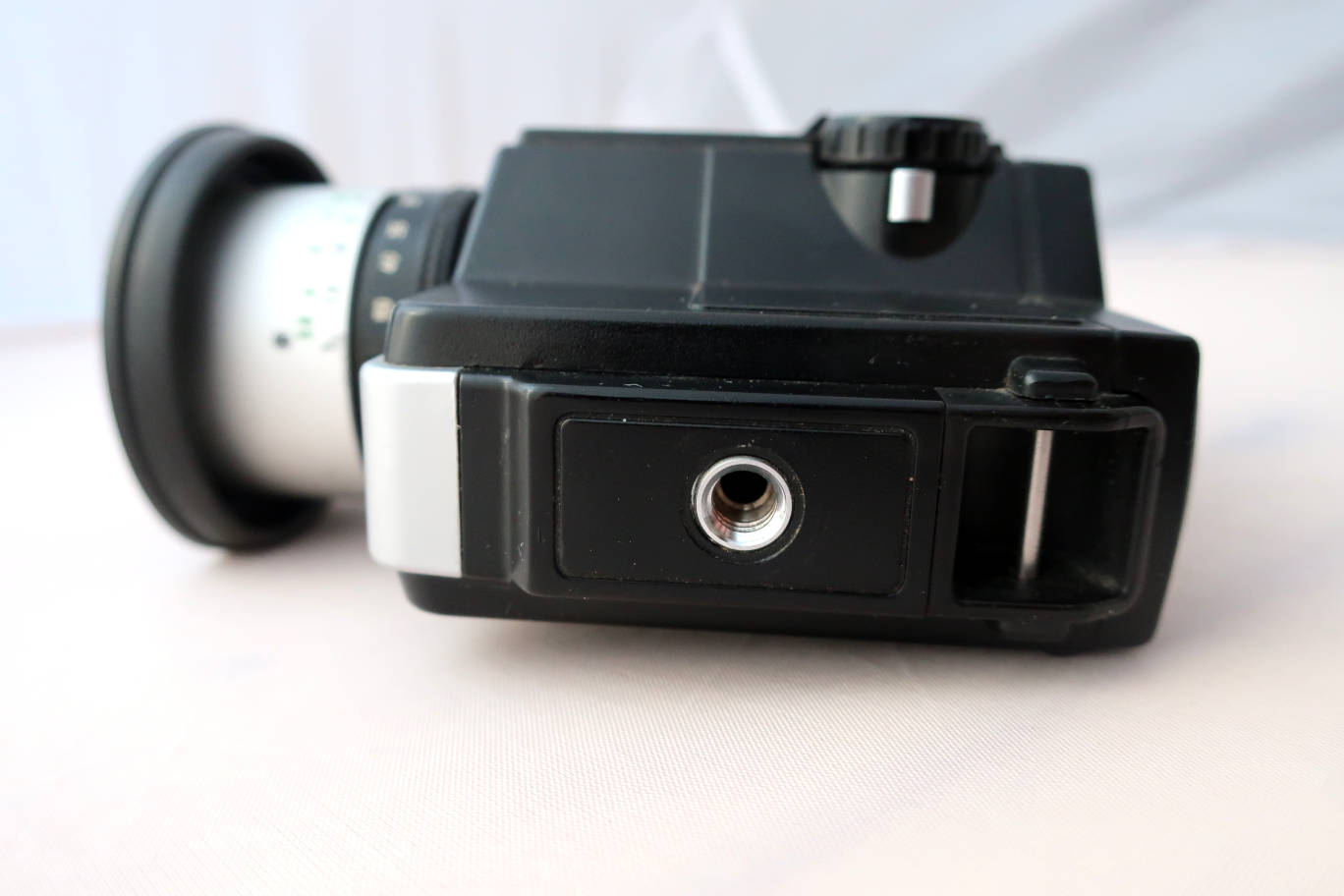

Right side. Tripod socket and strap lug. Under the shutter mode wheel: unlock button.


jpg/110_minolta_110_zoom_slr_IMG_4742.JPG

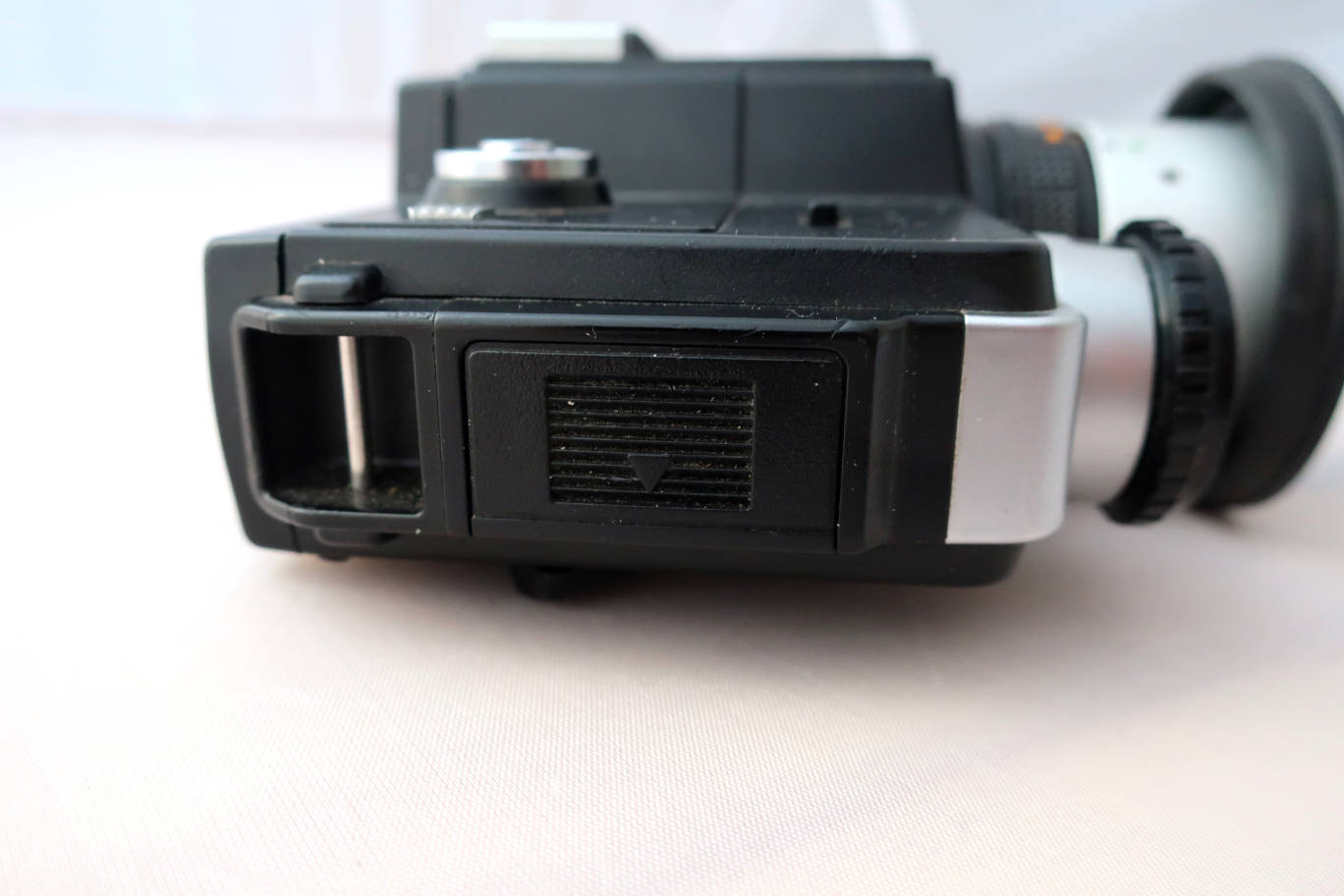

Left side.
Strap lug and battery compartment. Takes 2 LR/SR44 batteries.

jpg/110_minolta_110_zoom_slr_IMG_4748.JPG

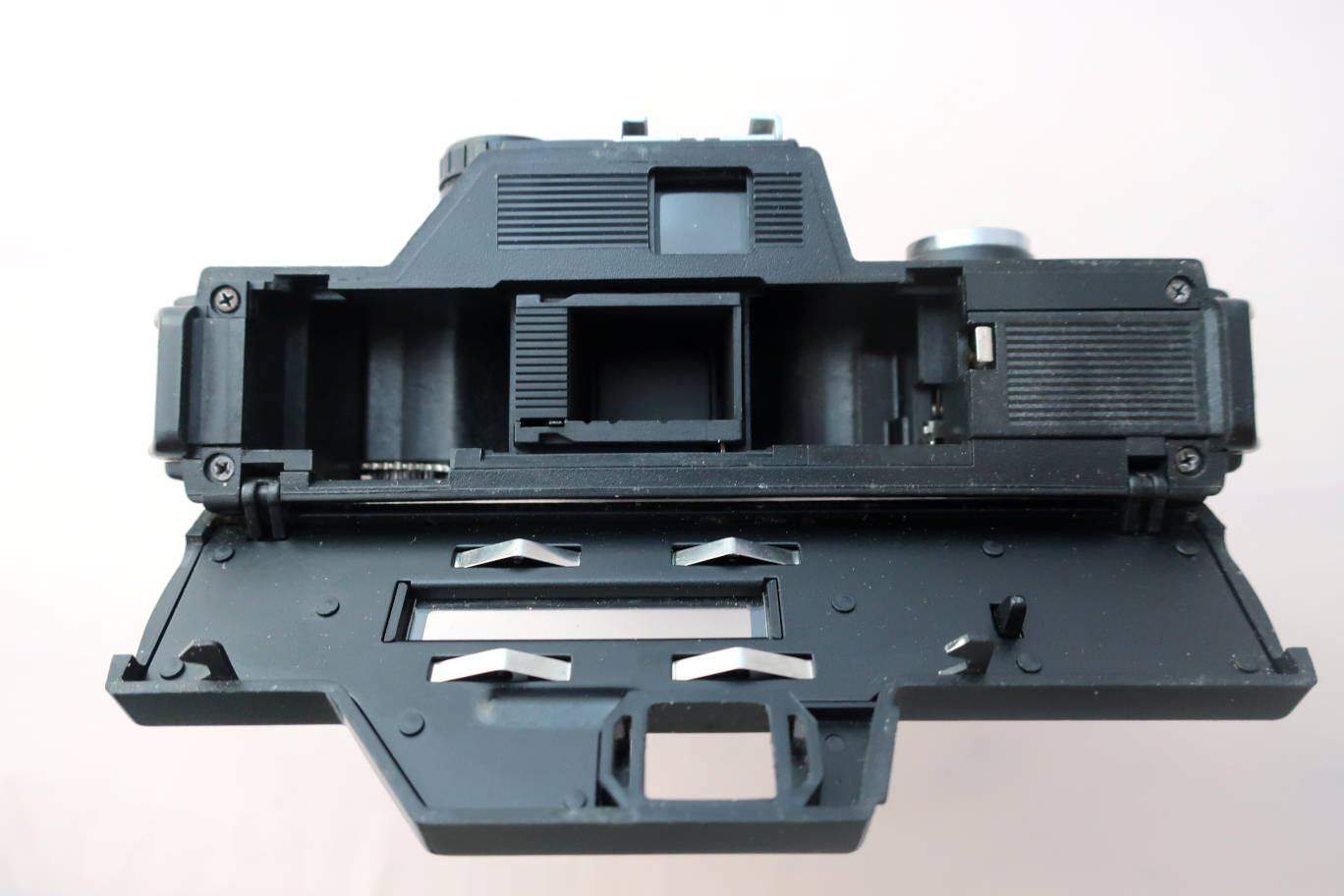

Camera film compartment open.


This camera is very easy to use, switch it on and it's ready.
It has manual aperture setting, the shutter is automatic. It has overexposure warning and slow shutter speed warning. You have only to focus and frame, which is easy via the SLR finder. There is a hot shoe for electronic flash, but the camera deals well with available light. After taking a picture, you have to advance film and cock shutter via the single-stroke lever under the camera. Putting a film is easy as well, you drop the film into the compartment, advance to the first frame and that's it.

For today's standards the finder is a bit dim, but perfectly usable. The zoom lens makes it big and heavy compared to other 110 cameras. But there is not much choice in 110 SLR cameras.

It's a very good camera with very good picture quality, good quality finish in a big and heavy body. It's fun to use. However the Pentax Auto 110 SLR is half the weight with 2 lenses. So it's a choice to make.
